dal::Node Class Reference

#include <Node.h>

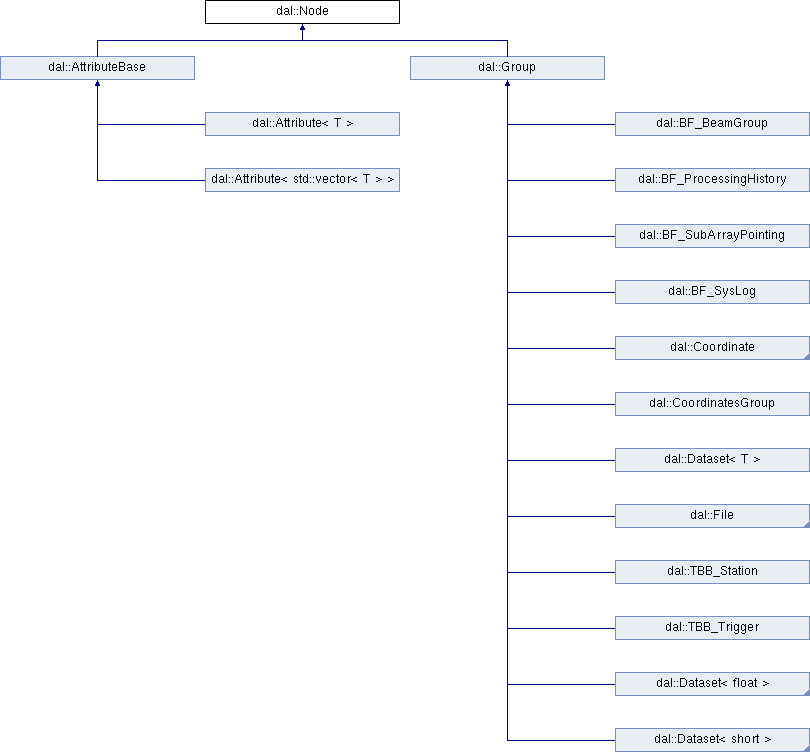

Inheritance diagram for dal::Node:

List of all members.

Public Types
typedef int	FileMode
Public Member Functions
	Node (Group &parent, const std::string &name)
Node &	operator= (Node rhs)
std::string	name () const
virtual bool	exists () const
bool	supported ()
const std::string &	filename () const
FileMode	fileMode () const
	Returns the mode the file was opened with.
bool	canWrite () const
const std::string &	versionAttrName () const
	Returns name of the version attribute.
Static Public Attributes
static const FileMode	READ = 1
static const FileMode	READWRITE = 2
static const FileMode	CREATE = 3
static const FileMode	CREATE_EXCL = 4
Protected Member Functions
	Node (const hid_gc &parent, const std::string &name, FileInfo fileInfo)
	Constructor for Node of root group (in File) only.
int	fileDirfd () const
VersionType &	fileInfoVersion () const
void	setFileInfoVersion (const VersionType &newVersion)
Protected Attributes
hid_gc	parent
std::string	_name
VersionType	minVersion
FileInfo	fileInfo
Friends
void	swap (Node &first, Node &second)

---

Detailed Description

Represents a node in the HDF5 hierarchy (an attribute, group, or dataset).

---

Member Typedef Documentation

typedef int dal::Node::FileMode

File open/create mode. If the filename already exists, CREATE will truncate it, while CREATE_EXCL will throw. None means not opened. It is used internally; not for DAL users.

For why this needs to be here, see the FileInfo class description.

---

Member Function Documentation

bool dal::Node::canWrite

(

)

const

Whether the file was opened for writing. Derived from fileMode().

Python example:

    # Create a new HDF5 file called "example.h5"
    >>> f = File("example.h5", File.CREATE)
    >>> f.canWrite()
    True

    # Can also query other nodes
    >>> a = AttributeString(f, "EXAMPLE_ATTR")
    >>> a.canWrite()
    True

    # Reopen the same file read-only
    >>> del a
    >>> del f
    >>> f = File("example.h5", File.READ)
    >>> f.canWrite()
    False

    # Clean up
    >>> import os
    >>> os.remove("example.h5")

virtual bool dal::Node::exists

(

)

const [inline, virtual]

Returns whether this Node exists in the HDF5 file.

Python example:

    # Create a new HDF5 file called "example.h5"
    >>> f = File("example.h5", File.CREATE)

    # An open file always exists
    >>> f.exists()
    True

    # Reference an attribute in the file
    >>> a = AttributeString(f, "EXAMPLE_ATTRIBUTE")

    # Initially, the attribute does not exist
    >>> a.exists()
    False

    # If we create it, it does exist
    >>> a.create()
    <...>
    >>> a.exists()
    True

    # Clean up
    >>> import os
    >>> os.remove("example.h5")

Reimplemented in dal::File, dal::Group, and dal::AttributeBase.

int dal::Node::fileDirfd

(

)

const [protected]

The file descriptor of the name of the dir in the file as it was opened, or -1 if "." or failed to open. Needed for a HDF5 issue workaround.

VersionType & dal::Node::fileInfoVersion

(

)

const [protected]

Returns the in-memory stored file version.

const string & dal::Node::filename

(

)

const

The name of the file as it was opened.

Python example:

    # Create a new HDF5 file called "example.h5"
    >>> f = File("example.h5", File.CREATE)

    # Query the file name
    >>> f.fileName()
    'example.h5'

    # Clean up
    >>> import os
    >>> os.remove("example.h5")

std::string dal::Node::name

(

)

const [inline]

Returns the HDF5 name of this node.

void dal::Node::setFileInfoVersion

(

const VersionType &

newVersion

)

[protected]

Set the in-memory stored file version. HDF5 file remains unchanged. Use only after changing the version attribute in the HDF5 file (or for init).

bool dal::Node::supported

(

)

[inline]

Returns whether this node is supported by the current version.

Python example:

    # Create a new HDF5 file called "example.h5"
    >>> f = File("example.h5", File.CREATE)

    # Set the file's version number to 2.6.0.
    # Pass three integers or pass a string.
    >>> f.fileVersion(VersionType("2.6.0"))

    # Create some attribute to play with
    >>> a = AttributeString(f, "EXAMPLE_ATTR")
    >>> a.value = "hello world"

    # Request the file version (any node in the file will do)
    >>> f.fileVersion()
    VersionType('2.6.0')
    >>> a.fileVersion()
    VersionType('2.6.0')

    # If an attribute is older than the file,
    # it is supported and should be present.
    >>> a.minVersion = VersionType('2.5.0')
    >>> a.supported()
    True

    # If an attribute is newer than the file,
    # it is possibly not present and therefor
    # not supported.
    >>> a.minVersion = VersionType('2.7.0')
    >>> a.supported()
    False

    # Clean up
    >>> import os
    >>> os.remove("example.h5")

---

Member Data Documentation

VersionType dal::Node::minVersion [protected]

The minimal version required for this node to be supported. Version numbers are user-defined, and matched against a fixed field in the HDF5 file (see fileVersion()).

Python example:

    # Create a new HDF5 file called "example.h5"
    >>> f = File("example.h5", File.CREATE)
    >>> a = AttributeString(f, "EXAMPLE_ATTRIBUTE")

    # The minimal required version of any node is 0.0.0 by default
    >>> a.minVersion
    VersionType('0.0.0')

    # Setting the minimal version.
    >>> a.minVersion = VersionType('1.2.3')

    # Requesting the minimal version.
    >>> str(a.minVersion)
    '1.2.3'

    # Clean up
    >>> import os
    >>> os.remove("example.h5")

---

The documentation for this class was generated from the following files:

• /home/amesfoort/DAL/dal/hdf5/Node.h
• /home/amesfoort/DAL/dal/hdf5/Node.cc
